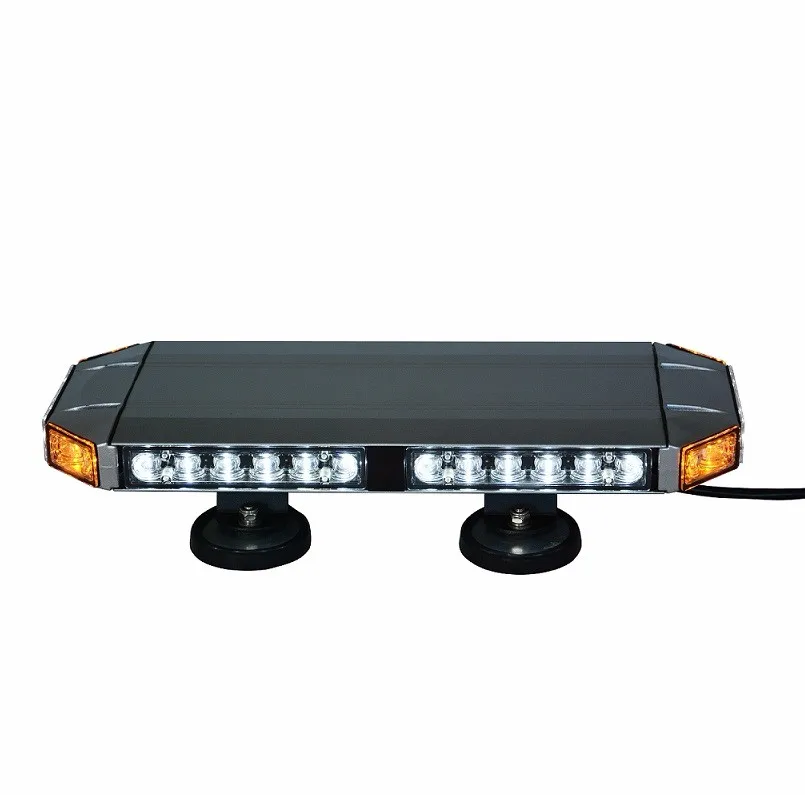

DC12V/24V Ambulance and emergency vehicle LED warning light bar

FOB Reference Price:Get Latest Price
$40.00 - $55.00 / Sets | 10 Set/Sets (Min. Order)
Light Color:
COOL WHITE
Rated Power:
240 WATTS
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Lianheng
Model Number:
T86-0.35
Warranty:
2 year, 2 Years
Type:
Ambulance light bar
Certification:
CE ROHS
Voltage:
12v
Product name:
Warning light bar
Color:
Red blue amber white green
Material:
PMMA+ABS+Aluminum
Power:
210 W
Work voltage:
DC12-24V
Color of LED and LENS:
5 M cable and with multi-function controller
Using range:
ambulance , fire truck ,Tow truck,emergency vehicle , motorcycle
Environment temperature:
-40 C to +70 C
Supply Ability
Supply Ability:
15000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton : 350 mm L*185 mm W * 57 mm H
Port
Ningbo
Video Description
Specification

Model T86-0.35M

Light Characteristics:


 LED Power :40 pcs of 3w LEDs

LED Lifespan :100000

Flash settings: 1~4Hz

Lens :Tir / Clear lens

Electrical Characteristics Voltage :DC 10~28V

Max Power: 54W


Physlcal Characteristics


 Colour Available :Amber,Blue,Red,Green,Purple,White

Ambient temperature :-20--+65℃

Mounting: Magnetic Mount / Bracket mount

Flash patterns: 27

Packing size: 400m L×295mm W×60mm H

Product Dimension :350m L×146mm W×30mm H

Net Weight / Gross Weight :2.1 KG / 2.58 KG

Our light bar come with built in  features with the option to flash in three different configurations: Standard, Alternating, and Multi Color and so on . To meet more demand, we added new flash patterns in the right to left, left to right, and center out directions. When wiring error , our circuit protection system will protect light bar well .


Product Description

The led light bar will be used in Emergency Vehicle.such as Police car, Fire truck,

Ambulance and so on...Special light bar with multifunctions for different kinds of vehicles

The Lens of led Amber light bar is made from high quality poly carbonate material

with high rigidity and strong impact force. The surface of the dome have been

plated with protective coating, which made colour not easy to fade. It is

weather-proof, which means the superior sealed function. The base material is aluminum.

Reliable control panel, with switches to control light bar.

Police Led Emergency top roof Warning Strobe Light bar , has dual color function ; Super bright and high power ; Weatherproof and long life expectancy ;

Each unit consist of high intensity LED with optic lenses ; Last pattern memory recall ;Selectable high/low intensity ; Compatible with all automobiles and devices equipped with a 12 or 24 Volt DC power source .


Packing & Delivery
Applications
Certifications
Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
